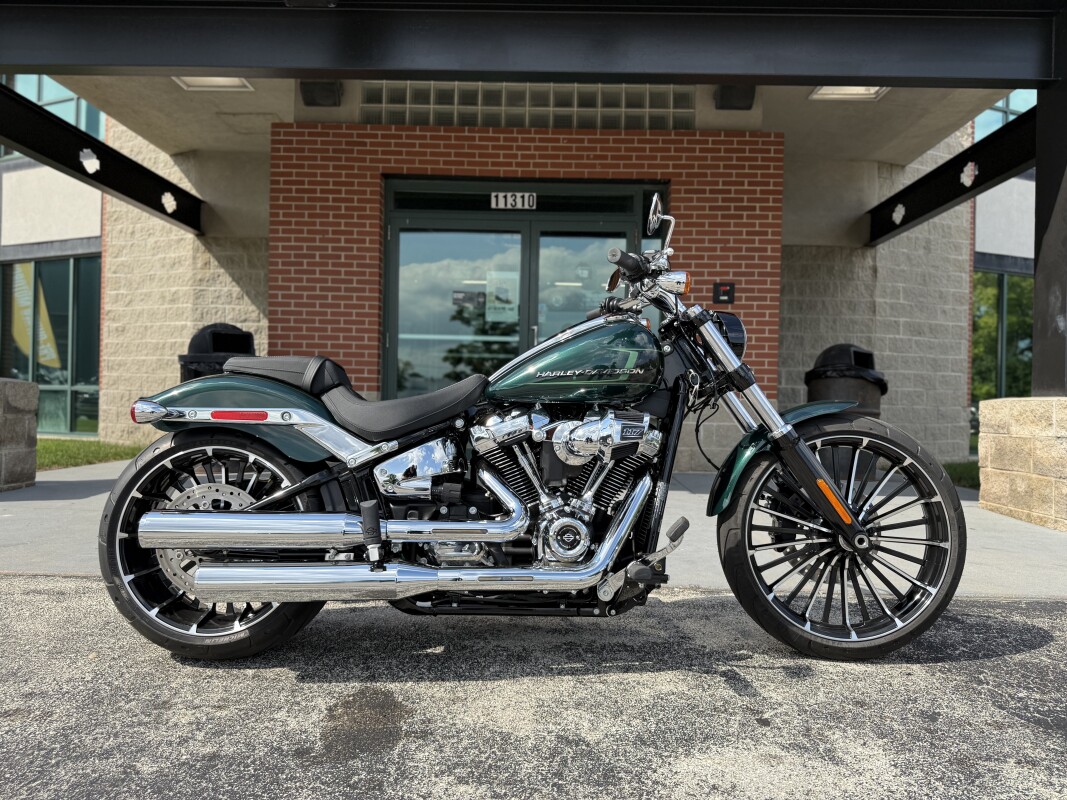

2024 Harley-Davidson<sup>®</sup> Breakout<sup>™</sup> 117 FXBR ALPINE GREEN

New 2024 Harley-Davidson® Breakout™ 117 FOR SALE NEAR Milwaukee, WI

This New Alpine Green 2024 Harley-Davidson® Breakout™ 117 is for sale at Milwaukee Harley-Davidson® located in Milwaukee, WI. Contact Milwaukee Harley-Davidson® of Milwaukee, WI today to schedule a test-ride. If this isn't the exact Harley-Davidson® you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Milwaukee where we host one of the largest selections of new and used motorcycles. Visit Milwaukee Harley-Davidson® of Milwaukee, your WI Harley-Davidson® dealership. WI’s premier new & used motorcycle dealer, we'll help you ride home on a new Harley-Davidson® today!

Milwaukee Harley-Davidson®

Easy Financing. Call Today!

Map Directions: 11310 W Silver Spring RD

Click To Call: (414) 461-4444

Dripping with chrome, the Harley-Davidson® Breakout 117 is a raked-out cruiser that packs Milwaukee-Eight® 117 V-Twin muscle.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  683 lb
- Tire, type:

  Michelin^® Scorcher^® "11" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight™ 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  123.2 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  101 HP / 75 kW @ 4750 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  135 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets
- Gauges:

  2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
